33.7x28.8mm Electrical Devices Adjustable Control Aluminum Gloss Knob With Double Screws 120°
Quick Details
Product Code：
KN337275288LB
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
- MaterialAluminum
- Bottom Dia.33.7mm/1.327"
- Top Dia.27.5mm/1.083"
- Height28.8mm/1.134"
- Colorblack,silver,red,blue,gold,gray
- Shaft holefit for 6mm
Shipping fee
Shipping fee

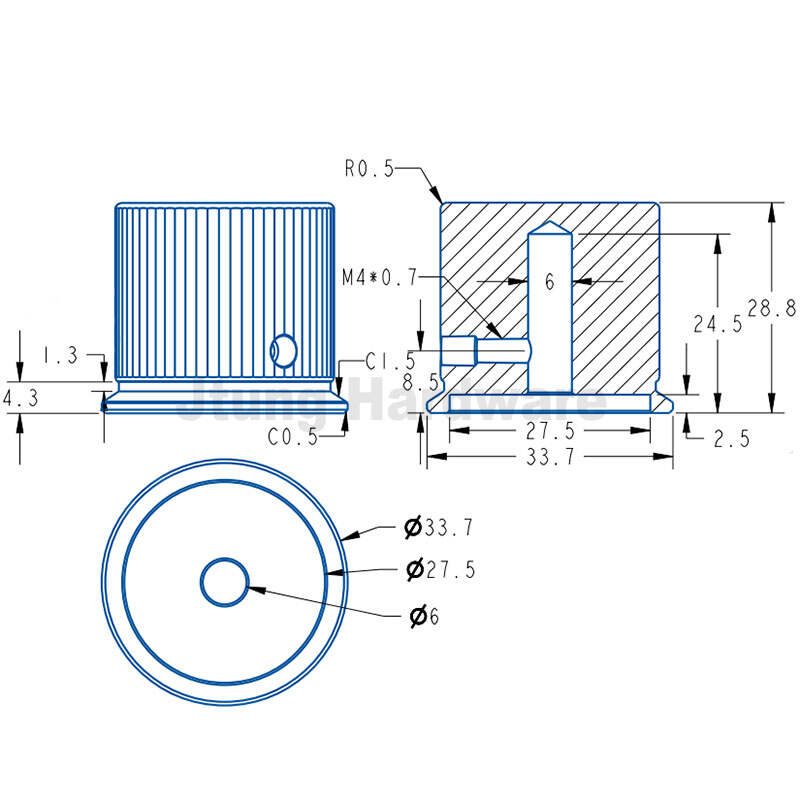

--Specification
| Item: | Electrical Devices Adjustable Control Aluminum Gloss Knob |
|---|---|
| Material: | aluminum |
| Model No.: | KN337275288LB |
| Bottom Dia.: | 33.7mm/1.327" |
| Top Dia.: | 27.5mm/1.083" |
| Height: | 28.8mm/1.134" |
| Color: | black / silver / red / gold / gray |
| Fit for: | 6mm round shaft |
  |
|---|
|
Package
Knobs are packed into blister trays by separately, will not damaged during transportation.
 |
|---|
|
Product Features:
Material: rotary knobs were made of aluminum, support customize to brass, stainless steel,steel and other materials.
Size: knobs are made by precision machines,all sizes are support customization, no need for extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
 |
|---|
There are many places to use the control knobs, such as gas stoves, air conditioning, etc., which can be seen everywhere.
What is a control knob
You may hear them as electrical or electronic knobs, they are usually made of rubber, plastic, or metal. Our control knob is made of aluminum.
Control knobs offer devices or tools with precise position modifications and also controlled degrees of a round movement. They might be marked with college graduations in the form of lines or numbers to provide referral points for changes. Some digital knobs might be tailored with printed logos or increased type.
Ways to install
It is installed in one or more ways, and the following will help you to install it.
- The clip placing knob should be installed with a nut drive.
- The panel placing knob is installed to the airplane of the panel cut utilizing screws.
- The stud placing knob is placed with a protruding stud (generally threaded).
- Threaded hole knob has threaded holes that can be screwed onto comparable studs. In the open opening installing knob, the threaded opening goes through the entire height of the knob and also is secured by the sinkhole at the top.
Why control knobs can improve your electric device
- Angle place knobs can be placed at any kind of set angle, generally between 0 as well as 90 °.
- Some knobs feature an indicator or tip, which is a line or dot on the top or side of the knob. Knobs might additionally include a mathematical range for setting indications.
- Brightened knobs are lit for boosted visibility in low-light conditions.
- Knobs may feature distinctive holds, generally rubber, for raised handling.
- Knobs might be knurled to improve hold and handling. Knurling on a turret reduces a pattern right into the sides of the knob to accomplish this advantage.
- Skirted knobs flare out at the bottom and also may be marked with a numerical range or sign.
- Latching knobs can hold the knob in position.
- Securing knobs prevent the knob from being moved without action by the operator. They may be unlocked with a pushbutton or trick.
If you need a nice and high-quality
