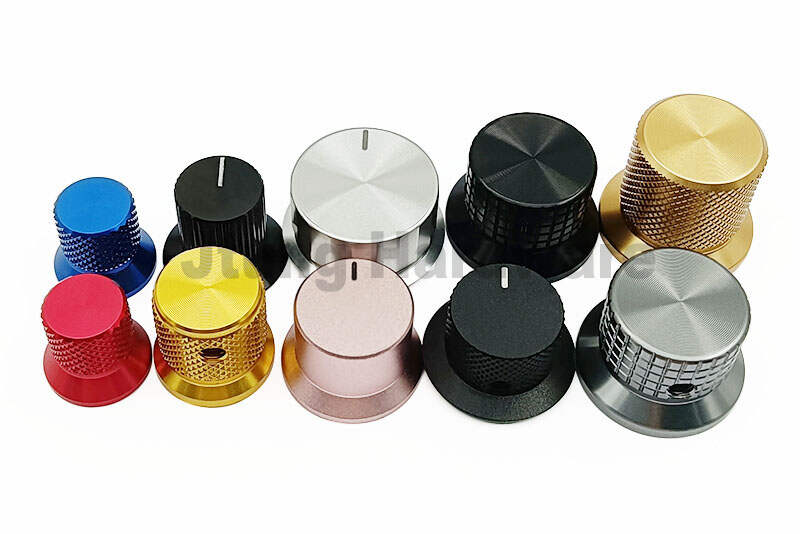

Aluminum Alloy Hat Pattern Amplifier Metal Knob Aluminum Skirted Hat Volume Knob
Quick Details
Product Code：
JT-SK
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee

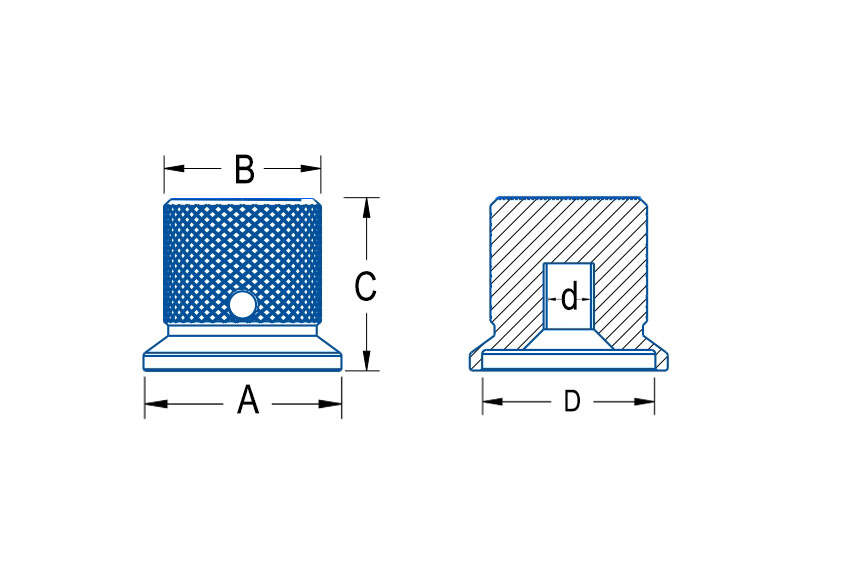

--Specification
| Model No. | Material |
A
|
B
|
C | D | d |
| LS1511514WW | aluminum+plastic | 15mm/0.59" | 11.5mm/0.45" | 14mm/0.55" | 12mm/0.49" | 6mm/0.24" |
| LS181515WW | aluminum+plastic | 18mm/0.71" | 15mm/0.59" | 15mm/0.59" | 12mm/0.49" | 6mm/0.24" |
| QL171517WW635 | aluminum | 17mm/0.69" | 15mm/0.59" | 17mm/0.69" | 15mm/0.59" | 6.35/0.25" |
| QL181615WW | aluminum |
18mm/0.71"
|
16mm/0.63"
|
15mm/0.59" | 10mm/0.39" | 6mm/0.24" |
| QL191316ZW32 | aluminum |
19mm/0.75"
|
13mm/0.51"
|
16mm/0.63" | 11mm/0.43" | 3.2mm/0.126" |
| QL201510ZW | aluminum |
20mm/0.79"
|
15mm/0.59"
|
10mm/0.39" | 15mm/0.59" | 6mm/0.24" |
| LS201614GM | aluminum+plastic | 20mm/0.79" | 16mm/0.63" | 14mm/0.55" | 18mm/0.71" | 6mm/0.24" |
| LS201815WW | aluminum+plastic | 20mm/0.79" | 18mm/0.71" | 15mm/0.59" | 18mm/0.71" | 6mm/0.24" |
| QL211921WW-D | aluminum | 21mm/0.83" | 19mm/0.75" | 21mm/0.83" | 21mm/0.83" | 6mm/0.24" |
| QL221613WW | aluminum |
22mm/0.87"
|
16mm/0.63"
|
13mm/0.51" | 10mm/0.39" | 6mm/0.24" |
| QL241916GZ | aluminum | 24mm/0.95" | 19mm/0.75" | 16mm/0.63" | 21mm/0.83" | 6mm/0.24" |
| QL222015ZW | aluminum |
22mm/0.87"
|
20mm/0.79"
|
15mm/0.59" | 15mm/0.39" | 6mm/0.24" |
| QL252213LB | aluminum |
25mm/0.98"
|
22mm/0.87"
|
13mm/0.51" | 10mm/0.39" | 6mm/0.24" |
| All sizes and colours are available to customize. | ||||||
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|
Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|
Aluminum alloy potentiometer knob, knob top using concentric circle CD pattern, knob outside using different knurled pattern, such as,square lattice(格纹), mesh（网纹）, stripe（条纹）, straight grain（直纹）smooth(光面）, and other different patterns, different shaft holes with splines, circular shaft, D shaft, and tooth shaft or lock the screw.
Suitable for the majority of electronic and electrical products, suitable for all rotary potentiometers and switch timers, and also for other,Analogue Mixer,Preamps,Digital Matrixes,digital mixing amplifier,transmitter device,digital Audio manager,audio compressors,reberb,studio monitors,synthesizer keyboard,audio effects,Compact Bass Amplifier.musical effects,vaccum therapy machine,musical instruments,Synthesizer,Soldering machine,agriculture machine,beauty product,Functional desk,power amplifier,blue tooth amplifier,Medical devices,Car volume knob,Hair Removal Depilatory Wax Melt Burners Warmer Heater Machine,hair removal depilatory hard waxing heater warmer,Wavetable Synthesizer,virtual analogue synthesiser and other products.
