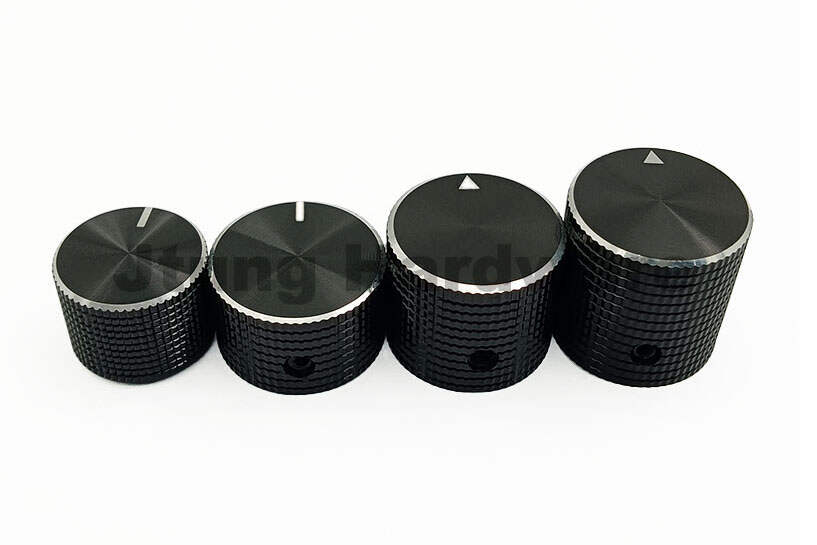

Aluminum Alloy Knob Potentiometer Control Knob Grid knurling Knob
Quick Details
Product Code：
JT-GZ-BKLB
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee
--Specification
| Model No. | Material |
A
|
B
|
C | d |
| QL1010GZ | aluminum | 10mm/0.39" | 10mm/0.39" | 4.2mm/0.165" | 4.2mm/0.165" |
| QL1313GZ | aluminum | 13mm/0.51" | 13mm/0.51" | 9.5mm/0.374" | 6mm/0.24" |
| QL1416GZ | aluminum |
14mm/0.55"
|
16mm/0.63"
|
11mm/0.43" | 6mm/0.24" |
| QL15125GZ635 | aluminum | 15mm/0.59" | 15mm/0.59" | 12mm/0.49" | 6.35/0.25" |
|
QL1714GZ
|
aluminum |
17mm/0.69"
|
14mm/0.55"
|
14mm/0.55" | 6mm/0.24" |
| QL1717GZ | aluminum |
17mm/0.69"
|
17mm/0.69"
|
14mm/0.55" | 6mm/0.24" |
| QL1816GZ | aluminum | 18mm/0.71" | 16mm/0.63" | 14mm/0.55" | 6mm/0.24" |
| QL20125GZ635 | aluminum | 20mm/0.79" | 12.5mm/0.49" | 16mm/0.63" | 6.35/0.25" |
| QL25155GZ | aluminum |
25mm/0.98"
|
15.5mm/0.61"
|
19mm/0.75" | 6mm/0.24" |
| QL2714GZ | aluminum | 27mm/1.06" | 14mm/0.55" | 21mm/0.83" | 6mm/0.24" |
| QL3015GZ | aluminum | 30mm/1.18" | 15mm/0.59" | 24mm/0.95" | 6mm/0.24" |
| QL3520GZ | aluminum | 35mm/1.38" | 20mm/0.79" | 28mm/1.1" | 6mm/0.24" |
| QL4015GZ | aluminum | 40mm/1.58" | 15mm/0.59" | 30mm/1.18" | 6mm/0.24" |
| QL4510GZ635 | aluminum | 45mm/1.77" | 10mm/0.39" | 10mm/0.39" | 6.35/0.25" |
| All sizes and colours are available to customize. | |||||
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|
Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|
What are the precautions for Grid knurling?
When starting rolling, it is necessary to use a large pressure to feed the knife, so that the workpiece can be carved with a deeper pattern, otherwise it is easy to produce random patterns.
In order to reduce the radial pressure at the beginning of rolling, 1/2~1/3 of the width of the roller surface can be in contact with the workpiece. In this way, the knurling tool can be easily pressed into the surface of the workpiece, and after the knurling meets the requirements of the workpiece after parking inspection, the tool can be moved longitudinally. Repeat rolling 1 to 3 times until the pattern protrudes.
When knurling, it is also necessary to pour cutting oil to lubricate the roller, and often cut out the cutting produced by the rolling wheel.
