Custom HIFI Audio Potentiometer Switch Control Knob Rotary Volume Knob
Quick Details
Product Code：
JT-GM
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee

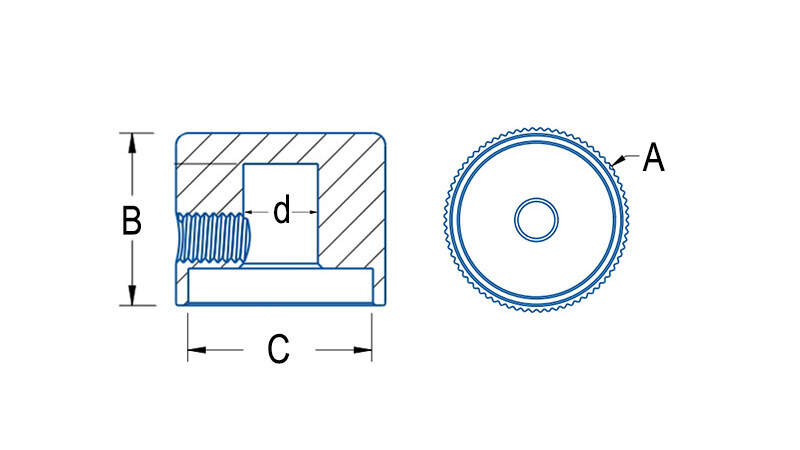

--Specification
| Model No. | Material |
A
|
B
|
C | d |
| LS1314GM | aluminum+plastic | 13mm/0.51" | 14mm/0.55" | 11mm/0.43" | 6mm/0.24" |
| LS1318GM | aluminum+plastic | 13mm/0.51" | 18mm/0.71" | 10mm/0.39" | 6mm/0.24" |
| LS1318GM1 | aluminum+plastic | 13mm/0.51" | 18mm/0.71" | 10mm/0.39" | 6mm/0.24" |
| LS1717GM | aluminum+plastic | 17mm/0.67" | 17mm/0.67" | 12mm/0.47" | 6mm/0.24" |
| LS1816GM | aluminum+plastic | 18mm/0.71" | 16m/0.63" | 16mm/0.63" | 6mm/0.24" |
| QL20155GM | aluminum |
20mm/0.79"
|
15.5mm/0.61"
|
15mm/0.59" | 6mm/0.24" |
| LS2211GM | aluminum+plastic | 22mm/0.87" | 11mm/0.43" | 17mm/0.67" | 6mm/0.24" |
| QL2217GM | aluminum |
22mm/0.87"
|
17mm/0.67"
|
14mm/0.55" | 6mm/0.24" |
| QL2515GM | aluminum | 22mm/0.87" | 15mm/0.59" | 15mm/0.59" | 6mm/0.24" |
| LS3015GM | aluminum+plastic |
30mm/1.18"
|
15mm/0.59"
|
23mm/0.91" | 6mm/0.24" |
| QL3520GM | aluminum | 35m/1.38" | 20mm/0.79" | 26mm/1" | 6mm/0.24" |
| LS3525GM | aluminum+plastic | 35mm/1.38" | 25mm/0.98" | 30mm/1.18" | 6mm/0.24" |
| All sizes and colours are available to customize. | |||||
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|
Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|

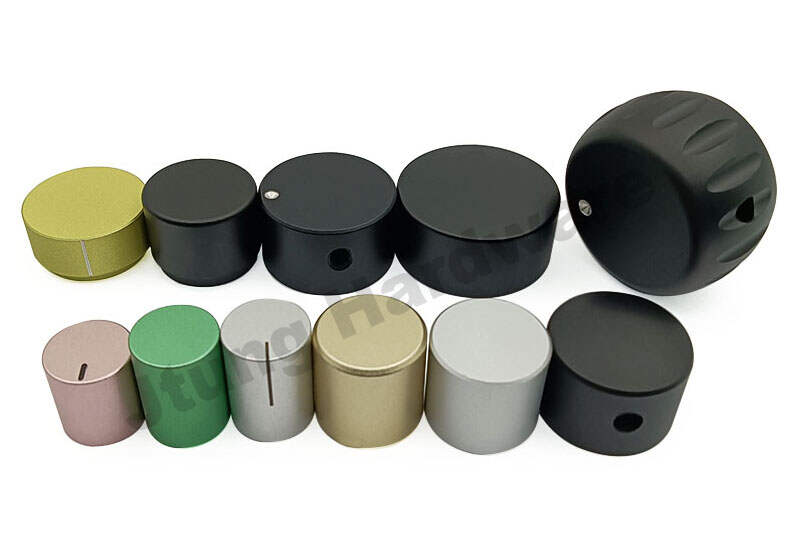

Our Control Knobs
Materials
Our guitar knob products are mainly made of aluminum alloy, stainless steel, copper, iron, and other materials, which can be customized according to your requirements.
Craftsmanship
Solid aluminum alloy knobs are CNC precision lathes. After a variety of processing methods, the surface treatment adopts oxidation, wire drawing, drawing, electroplating, powder spraying, laser engraving, oil filling, etc., which can be customized according to your requirements.
Product Usage
The aluminum knob is mainly used for the fixation and positioning of the potentiometer knob. In addition to various potentiometers, transfer switches, and coding switches, it is also widely used in various electronic appliances, instruments, audio amplifiers, agricultural machinery, beauty equipment, oven appliances, medical equipment, and so on.
