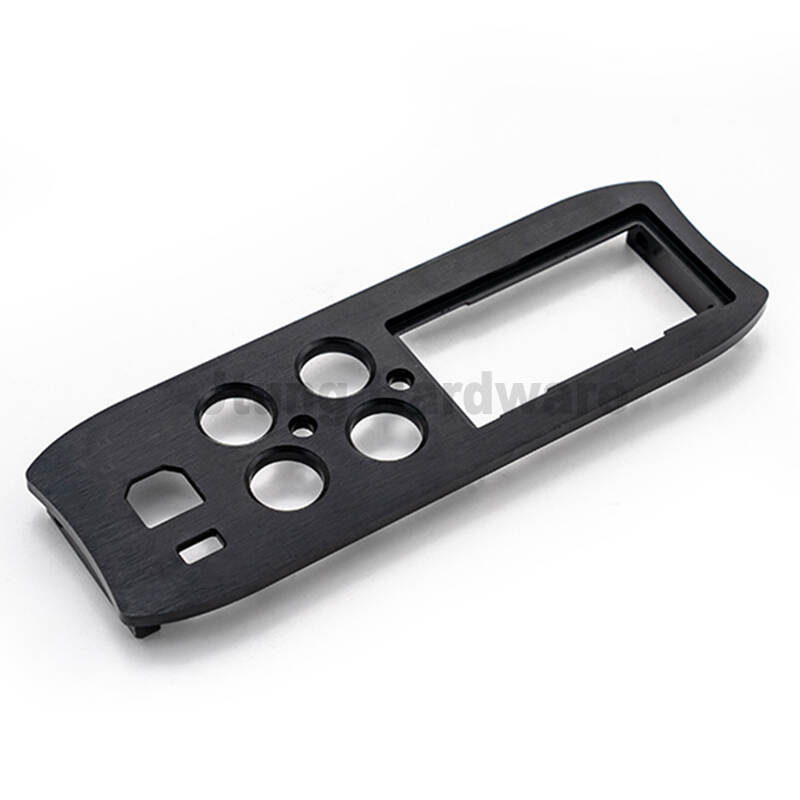

Custom Metal Button Panel Aluminum Control Panel For Audio Player/Electrical Media Instruments CNC Milling Service

Aluminum alloy panel processing technology:

1. Mechanical processing of aluminum alloy parts

CNC processing, automatic lathe processing, CNC lathe processing, and so on.

2. Aluminum alloy parts stamping processing

Stamping is to rely on the press and mold to plate, strip, pipe, profile, and other forces, stamping molding is by conventional or special stamping equipment power, so that the sheet in the mold directly by the deformation force and deformation, to obtain a certain shape, size, and performance of the production technology of product parts. Sheet material, die, and equipment is the three elements of stamping. Stamping forming is a metal cold deformation processing method, so it is called cold stamping or sheet stamping, referred to as stamping.

At present, there are many switch brands in the market whose panels are metal brushed, and the bottom plate is blocked by an iron plate. Is the safety performance of such switches really good? Is the metal switch panel safe? What material is used for the panel has no impact on safety. It is only beautiful to make it into a wire drawing. The metal switch panel has a good decorative effect and high durability and safety.

Is the metal switch panel safe?

Safety. Although the shell is metal, the isolation voltage of regular switches has been strictly tested, and the metal brushed switches look high-end.

Advantages of metal panel switch:

1. Elegant and slim design. The ultra-thin design with a beautiful arc is adopted, which can better fit with the wall. It seems that the switch socket is part of the wall, making the switch socket more natural, harmonious, and not isolated in the whole decoration. At the same time, the design also has the advantage of preventing the accumulation of dust, which not only makes cleaning easier but also ensures safety.

2. Anodized aluminum magnesium alloy panel.

3. It has a good decorative effect.

4. High durability and safety.

Wiring method of the metal button switch

The wiring of the metal button switch requires two button switches. Connect the positive pole of the power line to one end of the normally closed contact of button 1, the other end of the normally closed contact is connected to the control coil terminal 1 of the relay with a wire, and the other terminal 2 of the control coil of the relay is connected with two wires, one is connected to the normally open auxiliary contact of the relay, and the other end of the normally open auxiliary contact of the relay is connected to the negative pole of the power supply. The other one is connected to the normally open contact of button switch 2, and the other end of the normally open contact is connected to the negative pole of the power supply, to realize the automatic disconnection in case of power failure. Press button 2 to start. Press button 1 to close.

There are many kinds of metal button switches, including 2, 3, 4, 5, 6, 7, and 8 legs, mainly depending on which one you buy.

Usually, the two pins are normally open, which can directly control the on-off of a line.

The three pins are 1 normally open and 1 normally closed, and the common end of 1 pin is also called the C pin.

The 4-pin is usually light type, with 1 normally open function.

The 5-pin is usually a light type, with the function of 1 normally open and 1 normally closed.

There are two types of 6 feet: two color light-emitting 3 feet, with the function of 1 normally open and 1 normally closed; 2 normally open and 2 normally closed.

The 7-pin is usually three color or two-color double LED light-emitting type, with the function of 1 normally open and 1 normally closed.

The 8-pin is usually a light type, with 2 normally open and 2 normally closed functions.
