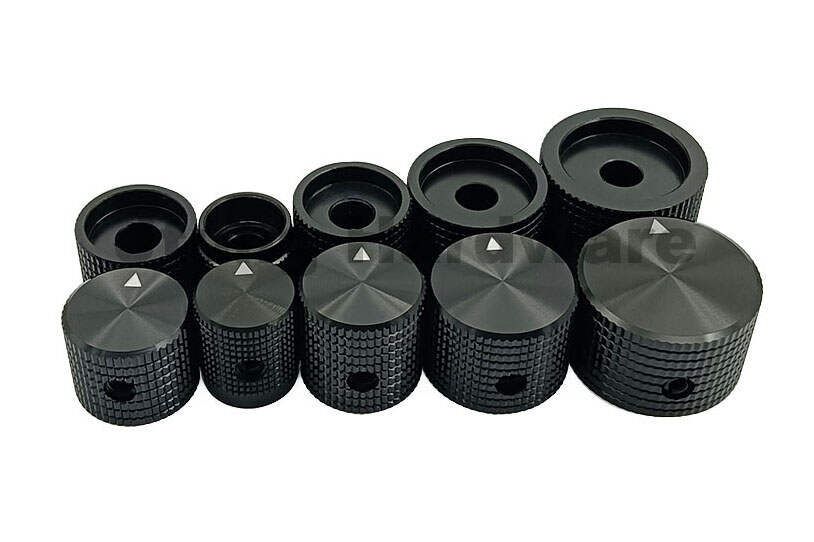

Grid knurling Lock Screw Aluminum Pedal Potentiometer Volume Rotating Control Knobs
Quick Details
Product Code：
JT-GZ-BK
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee
--Specification
| Model No. | Material |
A
|
B
|
C | d |
| QL1010GZ | aluminum | 10mm/0.39" | 10mm/0.39" | 4.2mm/0.165" | 4.2mm/0.165" |
| QL1416GZ | aluminum |
14mm/0.55"
|
16mm/0.63"
|
11mm/0.43" | 6mm/0.24" |
| QL15125GZ635 | aluminum | 15mm/0.59" | 15mm/0.59" | 12mm/0.49" | 6.35/0.25" |
|
QL1714GZ
|
aluminum |
17mm/0.69"
|
14mm/0.55"
|
14mm/0.55" | 6mm/0.24" |
| QL1614GZ | aluminum | 16mm/0.63" | 14mm/0.55" | 11mm/0.43" | 6mm/0.24" |
| QL1717GZ | aluminum |
17mm/0.69"
|
17mm/0.69"
|
14mm/0.55" | 6mm/0.24" |
| QL1816GZ | aluminum | 18mm/0.71" | 16mm/0.63" | 14mm/0.55" | 6mm/0.24" |
| QL1920GZ | aluminum | 19mm/0.75" | 20mm/0.79" | 14mm/0.55" | 6mm/0.24" |
| QL20125GZ635 | aluminum | 20mm/0.79" | 12.5mm/0.49" | 16mm/0.63" | 6.35/0.25" |
| QL21155GZ | aluminum |
21mm/0.83"
|
15.5mm/0.61"
|
17mm/0.69" | 6mm/0.24" |
| QL2216GZ | aluminum | 22mm/0.87" | 16mm/0.63" | 14mm/0.55" | 6mm/0.24" |
| QL25155GZ | aluminum |
25mm/0.98"
|
15.5mm/0.61"
|
19mm/0.75" | 6mm/0.24" |
| QL3015GZ | aluminum | 30mm/1.18" | 15mm/0.59" | 24mm/0.95" | 6mm/0.24" |
| QL3018GZ | aluminum | 30mm/1.18" | 18mm/0.71" | 24mm/0.95" | 6mm/0.24" |
| All sizes and colours are available to customize. | |||||
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|
Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|
Rotating Encoders are gadgets that transform the rotational activity of the shaft right into an analogue or digital signal. This is done by transforming an input voltage right into a various outcome voltage (analogue) or a digital signal depending upon the setting of the shaft. It supplies information on position, speed, matter or instructions. They Secret benefit of using a Rotary Encoder Switch Over is that it can rotate parallel forever. Because of their effectiveness and also fine digital control; they are used in lots of applications consisting of robotics, CNC makers and printers. Rotary Encoder Changes action rotating movements as well as displacement and also can either be absolute or step-by-step which we will certainly discuss listed below.
