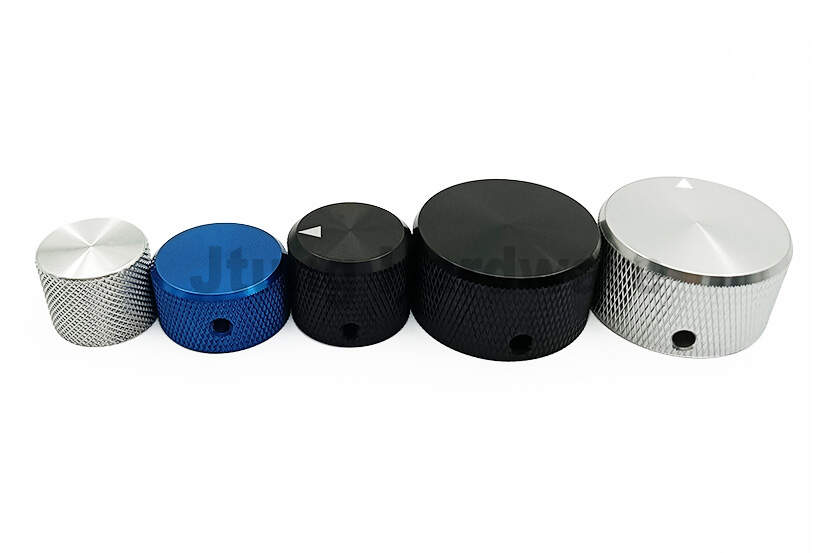

High Quality Aluminum Potentiometer Knob Rotary Adjusting Knob
Quick Details
Product Code：
JT-WW
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee
--Specification
| Model No. | Material |
A
|
B
|
C | d |
|
LS1023WW
|
aluminum+plastic | 10mm/0.39" | 23mm/0.91" | 8.5mm/0.335" | 6mm/0.24" |
| QL1023WW | aluminum | 10mm/0.39" | 23mm/0.91" | 8.5mm/0.335" | 6mm/0.24" |
|
LS1028WW
|
aluminum+plastic | 10mm/0.39" | 28mm/1.1" | 8.5mm/0.335" | 6mm/0.24" |
| QL1515WW | aluminum | 15mm/0.59" | 15mm/0.59" | 12mm/0.49" | 6mm/0.24" |
| LS1818WW | aluminum+plastic | 18mm/0.71" | 18mm/0.71" | 16mm/0.63" | 6mm/0.24" |
| QL2018WW | aluminum |
20mm/0.79"
|
18mm/0.71"
|
14mm/0.55" | 6mm/0.24" |
| LS21517WW | aluminum+plastic | 21.5mm/0.85" | 17mm/0.67 | 16mm/0.63" | 6mm/0.24" |
| QL2515WW | aluminum | 25mm/0.98" | 15mm/0.59" | 16mm/0.63" | 6mm/0.24" |
| QL2520WW83 | aluminum |
25mm/0.98"
|
20mm/0.79"
|
/ | 6mm/0.24" |
| QL2615WW | aluminum | 26mm/1.02" | 15mm/0.59" | 21mm/0.83" | 6mm/0.24" |
| QL2714WW | aluminum | 27mm/1.06" | 14mm/0.55" | 24mm/0.95" | 6mm/0.24" |
| QL3025WW | aluminum | 30mm/1.18" | 25mm/0.98" | 21mm/0.83" | 6mm/0.24" |
| QL3820WW65 | aluminum | 38mm/1.5" | 20mm/0.79" | / | 6.5mm/0.26" |
| QL3821WW | aluminum | 38mm/1.5" | 21mm/0.83" | 25mm/0.98" | 6mm/0.24" |
| QL3820WW83 | aluminum | 38mm/1.5" | 20mm/0.79" | / | 8.3mm/0.33" |
| All sizes and colours are available to customize. | |||||
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|
Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|
Aluminum button knob, adopting concentric circle CD pattern on the top of knob, different knurling patterns on outside of knob,with different shaft hole to fit spline,round and D shaft.
Dimensions,material,color are can be customized according to samples or drawings (as long as your idea is reasonable, we can make corresponding products.
We will provide you with the best quality supply system, service experience, product experience.
