Potentiometer Rotary Switch Audio Control Rhombus Aluminum Metal Knobs
Quick Details
Product Code：
JT-WW
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee

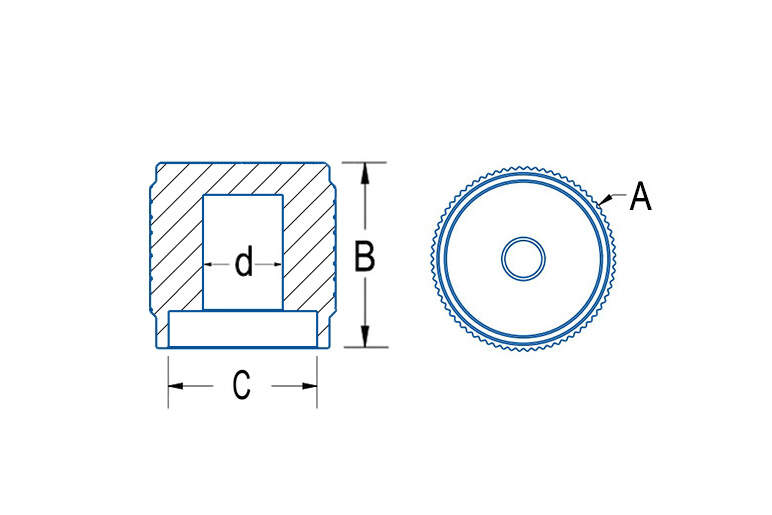

--Specification
| Model No. | Material |
A
|
B
|
C | d |
|
QL12611WW
|
aluminum | 12.6mm/0.5" | 11mm/0.43" | 9.5mm/0.374" | 6mm/0.24" |
| LS1214WW | aluminum+plastic | 12mm/0.49" | 14mm/0.55" | 9.5mm/0.374" | 6mm/0.24" |
| LS12716WW | aluminum+plastic | 12.7mm/0.5" | 16mm/0.63" | 9.5mm/0.374" | 6mm/0.24" |
| LS1216WW | aluminum+plastic | 12mm/0.49" | 16mm/0.63" | 9.5mm/0.374" | 6mm/0.24" |
| QL12716WW | aluminum | 12.7mm/0.5" | 16mm/0.63" | 9.5mm/0.374" | 6mm/0.24" |
| QL1313WW | aluminum |
13mm/0.51"
|
13mm/0.51"
|
9mm/0.354" | 6mm/0.24" |
| LS1513WW | aluminum+plastic | 15mm/0.59" | 13mm/0.51" | 10mm/0.39" | 6mm/0.24" |
| QL1513WW635 | aluminum | 15mm/0.59" | 13mm/0.51" | 10mm/0.39" | 6.35mm/0.25" |
| QL1513WW | aluminum |
15mm/0.59"
|
13mm/0.51"
|
10mm/0.39" | 6mm/0.24" |
| QL1515WW | aluminum | 15mm/0.59" | 15mm/0.59" | 10mm/0.39" | 6mm/0.24" |
| QL1515WW635 | aluminum | 15mm/0.59" | 15mm/0.59" | 12mm/0.49" | 6.35mm/0.25" |
| QL1717WW | aluminum | 17mm/0.67" | 17mm/0.67" | 11mm/0.43" | 6mm/0.24" |
| LS1716WW635 | aluminum+plastic | 17mm/0.67" | 16mm/0.63" | 13mm/0.51" | 6.35mm/0.25" |
| LS1728WW | aluminum+plastic | 17mm/0.67" | 28mm/1.1" | 8.5mm/0.33" | 6mm/0.24" |
| QL1916WW635 | aluminum | 19mm/0.75" | 16mm/0.63" | 13mm/0.51" | 6.35mm/0.25" |
| QL3017WW | aluminum | 30mm/1.18" | 17mm/0.67" | 25mm/0.98" | 6mm/0.24" |
| All sizes and colours are available to customize. | |||||
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|

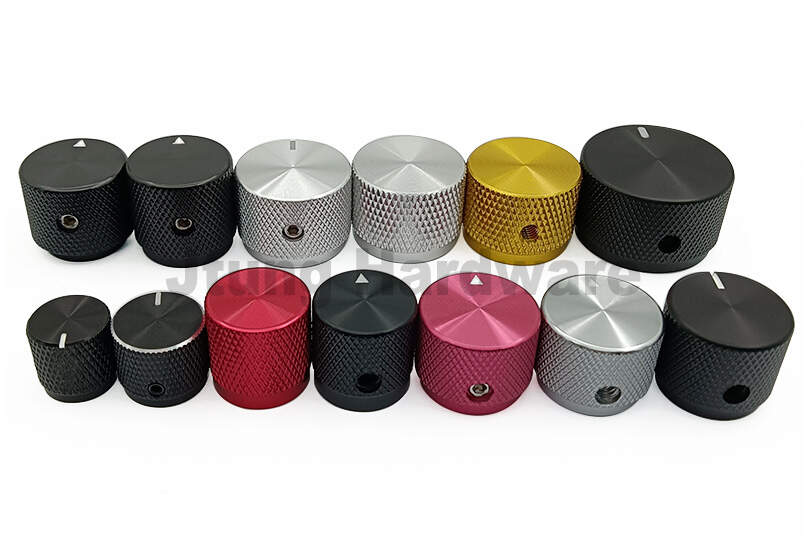

Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|
Dongguan Jtung Hardware Electronics Co.,Ltd
We are a manufacturer focusing on control knobs and panel/plate/enclosure for electronic products, located in Guangdong ,China, near from Guangzhou and Shenzhen, in the world factory Dongguan city.
One of main product is rotary control knob, make by metal materials, such as aluminum,brass, stainless steel, steel with different surface treatment and colors, knobs are fit for potentiometer,encoder,switch and screw for musical instruments,industrial machinery,agricultural machinery, medical equipment,household appliances and furniture.
Another one of product are panels/frames/plates/enclosures/stands for electronic products/device/equipment,such as home appliance,musical instrument control panel,case.
And offer the main fabrication service for customization, make products on CNC milling, CNC turning, laser cutting and more processes.
