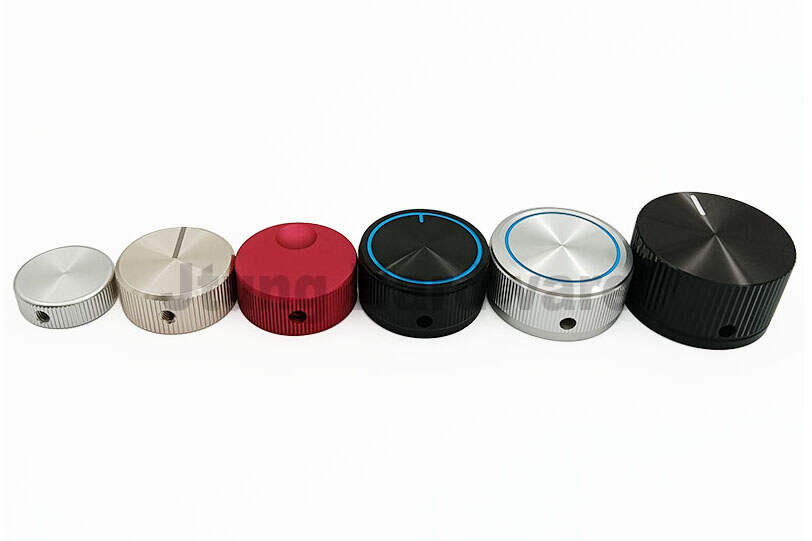

Sound Amplifier Stage Equipment Finger Crank Control Knob Aluminium Alloy Potentiometer Sound Mixer Knob
Quick Details
Product Code：
JT-ZW
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee
--Specification
| Model No. | Material |
A
|
B
|
C | d |
| QL258ZW | aluminum | 25mm/0.98" | 8mm/0.32" | --- | 6mm/0.24" |
| LS2020ZW | aluminum+plastic | 20mm/0.79" | 20mm/0.79" | 12mm/0.49" | 6mm/0.24" |
| QL2022ZW | aluminum | 20mm/0.79" | 22mm/0.87" | 17mm/0.67" | 6mm/0.24" |
| QL2510ZW | aluminum | 25mm/0.98" | 10mm/0.39" | 14mm/0.55" | 6mm/0.24" |
| SUS25155ZW | SUS | 25mm/0.98" | 15.5m/0.61" | 19mm/0.75" | 6mm/0.24" |
| LS25155ZW | aluminum+plastic |
25mm/0.98"
|
15.5mm/0.61"
|
16mm/0.63" | 6mm/0.24" |
| QL2517ZW | aluminum | 25mm/0.98" | 17mm/0.67" | 26mm/1.02" | 6mm/0.24" |
| QL2817ZW | aluminum | 28mm/1.1" | 17mm/0.67" | 15mm/0.59" | 6mm/0.24" |
| QL30125ZW635 | aluminum |
30mm/1.18"
|
12.5mm/0.49"
|
24mm/0.95" | 6.35mm/0.25" |
| LS30125ZW | aluminum+plastic | 30mm/1.18" | 12.5mm/0.49" | 24mm/0.95" | 6mm/0.24" |
| QL3213ZW | aluminum | 32mm/1.26" | 13mm/0.51" | 24mm/0.95" | 6mm/0.24" |
| QL3520ZW | aluminum | 35mm/1.38" | 20mm/0.79" | 15mm/0.59" | 6mm/0.24" |
| QL3817ZW | aluminum | 38mm/1.5" | 17mm/0.67" | 30mm/1.18" | 6mm/0.24" |
| QL3825ZW | aluminum | 38mm/1.5" | 17mm/0.67" | 26mm/1.02" | 6mm/0.24" |
| QL4022ZW | aluminum | 40mm/1.58" | 22mm/0.87" | 30mm/1.18" | 6mm/0.24" |
| QL4225ZW | aluminum | 42mm/1.65" | 22mm/0.87" | 24mm/0.95" | 6mm/0.24" |
| All sizes and colours are available to customize. | |||||
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|
Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|
Knowledge
Volume Knob: Controls the volume of the electric guitar's output, and also affects the distortion of other sounds.
Tone Knob: Controls the “light” and “dark” output tone of the electric guitar.
Volume Knob: Controls the volume of the electric guitar's output, and also affects the distortion of other sounds.
Tone Knob: Controls the “light” and “dark” output tone of the electric guitar.
How to clean aluminum treble control knobs?
Rinse aluminum products with clean water. First, the dust and debris on the surface of the aluminum product should be washed with clean water.
If it's still dirty or clumps after rinsing with water, pour dish soap in hot water and use a soft-bristle brush or magic wipe to clean the aluminum.
If the dirt on the aluminum products is difficult to clean, you can use hot water to make the dirt fall off easily, and then scrape it off with a scraper.
Rinse aluminum products with clean water. First, the dust and debris on the surface of the aluminum product should be washed with clean water.
If it's still dirty or clumps after rinsing with water, pour dish soap in hot water and use a soft-bristle brush or magic wipe to clean the aluminum.
If the dirt on the aluminum products is difficult to clean, you can use hot water to make the dirt fall off easily, and then scrape it off with a scraper.
