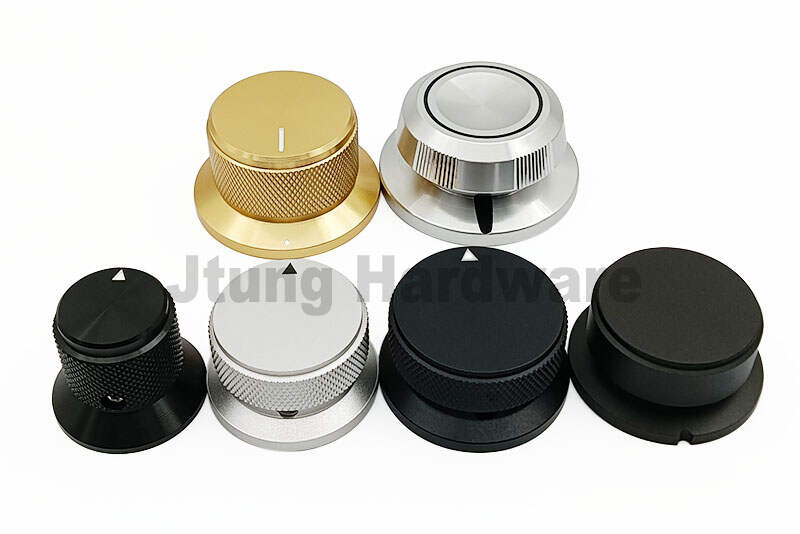

Volume AMP Potentiometer Aluminum Knob Hat Pattern Knob
Quick Details
Product Code：
JT-SK
OEM：
Available
Sample:
Available
Payment:
VISA,MasterCard,Western Union,L/C,T/T,D/P,D/A,Other
Place of Origin：
China
Supply Ability：
50000 piece per week
Quick Details
Shipping fee
Shipping fee
--Specification
| Model No. | Material |
A
|
B
|
C | D | d |
| QL302025WW | aluminum | 30mm/1.18" | 20mm/0.79" | 25mm/0.98" | 15mm/0.59" | 6mm/0.24" |
| LS302525GZ | aluminum+plastic | 30mm/1.18" | 25mm/0.98" | 25mm/0.98" | 15mm/0.59" | 6mm/0.24" |
| QL342820WW | aluminum | 34mm/1.34" | 28mm/1.1" | 20mm/0.79" | 20mm/0.79" | 6mm/0.24" |
| QL353020ZW | aluminum | 35mm/1.38" | 30mm/1.18" | 20mm/0.79" | 20mm/0.79" | 6mm/0.24" |
| QL383019GM | aluminum |
38mm/1.5"
|
30mm/1.18"
|
19mm/0.75" | 20mm/0.79" |
6mm/0.24"
|
| QL383020ZW | aluminum | 38mm/1.5" | 30mm/1.18" | 20mm/0.79" | 20mm/0.79" | 6mm/0.24" |
|
QL383220WW
|
aluminum | 38mm/1.5" | 32mm/1.26" | 20mm/0.79" | 20mm/0.79" | 6mm/0.24" |
| QL383525WW | aluminum | 38mm/1.5" | 35mm/1.38" | 15mm/0.59" | 25mm/0.98" | 6mm/0.24" |
| LS443425WW | aluminum | 44mm/1.73" | 34mm/1.34" | 25mm/0.98" | 20mm/0.79" | 6mm/0.24" |
| LS453025GZ | aluminum+plastic | 45mm/1.77" | 30mm/1.18" | 25mm/0.98" | 20mm/0.79" | 6mm/0.24" |
| QL484023 | aluminum | 48mm/1.89" | 40mm/1.57" | 23mm/0.91" | 25mm/0.98" | 6mm/0.24" |
| QL484025 | aluminum | 48mm/1.89" | 40mm/1.57" | 25mm/0.98" | 25mm/0.98" | 6mm/0.24" |
| QL504030WW | aluminum | 50mm/2" | 40mm/1.57" | 30mm/1.18" | 25mm/0.98" | 6mm/0.24" |
|
Package
Knobs are packed into blister tray by separately,will not damaged during transportation.
 |
|
Product Features: Material:rotary knobs was made of aluminum,support customize to brass,stainless steel,steel and other materials
Size: knobs are made by precision machines,all sizes are support customization,no need extra mold cost.
Shaft hole: fit for smooth shaft, spline/teeth shaft, and D shaft/Half shaft as below:
|
The aluminum button knob is made of microfabrication,can be make in different surface treatment, such as anodizing, electroplating, painting. High-grade potentiometer knob,made by metal material as aluminum. stainless steel, steel,brass or other material,made in set screw type or push fit type,made in different shape as cylindrical, hat shape, cone and other shapes.
Our main processing are make products by CNC milling, CNC turing-milling , CNC bending and laser cutting are no molds,according to your requirments,which can be customized to any specifications and colors.or print LOGO on the knobs , The delivery date can be quickly.
